Fixed Orifice Double Regulating Valve

Fixed Orifice Double Regulating Valve

Specification

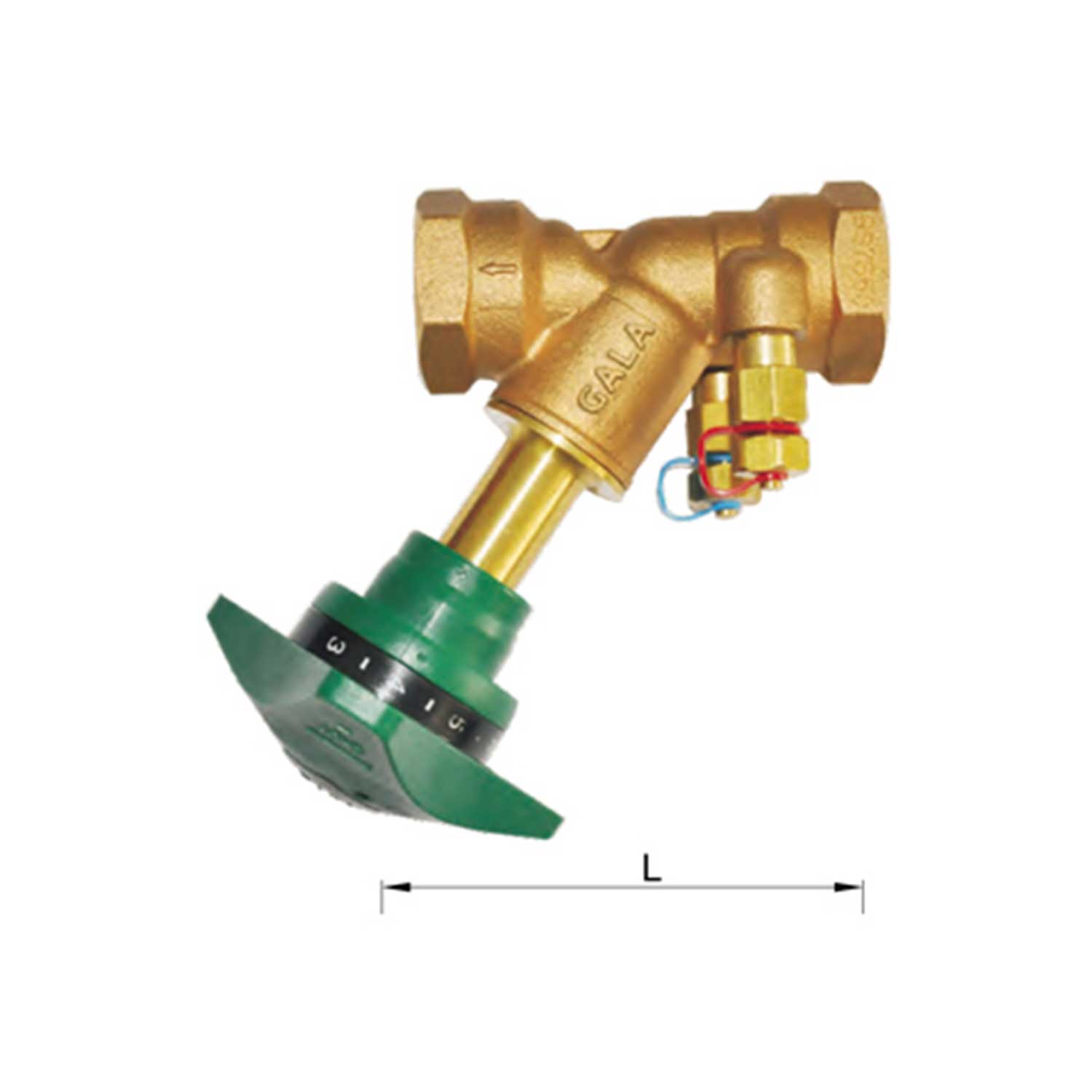

Y-pattern globe valves having characterized throttling disk tending towards equal percentage performance. Integral square edged entrance orifice plate and insertion test points fitted. Double regulating feature allows valve opening to be set
with an Allen key. Operation of the valve is by means of the Micro set hand wheel.

Enquire
Download PDF
Whatsapp

    We’re Here to Help – Enquire Now!






    Categories: , , ,
    HVAC
    Plumbing
    Easy Install
    Sustainable
    Cost Effective

    Description

    Features

    Design Standard
    • Size / 1 3 2″ to /4″: threaded to BS 2779(ISO7)
    • Size 1″ to 2″: threaded to BS 10266(ISO7)
    • Also available threaded to ANSI B1.20.1
    • Adaptor kits for use with copper tube also available
    Application

    This single unit-commissioning valve is designed for installation in circuits where combined functions of regulation and flow measurement are required. Accuracy of flow measurement is ±5% across all hand wheel settings.

    Pressure Temperature Ratings
    • Temperature ºc -10 to 100 110 120
    • Pressure (Bar) 25 23.4 21.8

    Material

    Parts Materials Specification Parts Materials Specification
    Body Bronze B62 C83600 Disc(15-20) Brass B453 C35330
    Bonnet(15-32) Brass B453 C35330 Disc(25-50) Brass+PTFE B453 C35330
    Bonnet(40-50) Bronze B62 C83600 Orifice Insert Brass B453 C35330
    Stem Brass B453 C35330 Hand Wheel Plastic Commercial
