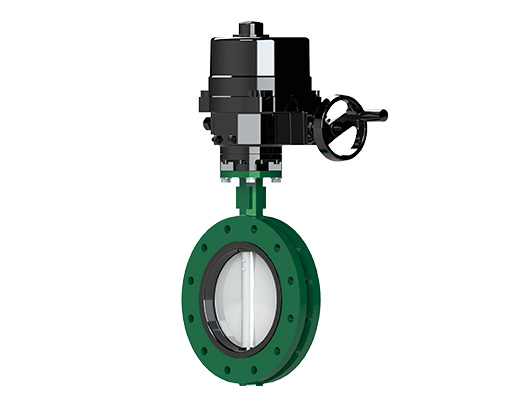

U-Type Butterfly Valve

Product Name: U-Type Butterfly Valve

Product Figure No.: Fig. 2122

Product Size: DN150~DN1200

Product Pressure: PN16

Face to Face Standard: ISO 5752/BS 5155/ EN 593/MSS SP-67/API 609

Flange Connection Standard: EN1092-2 PN16 ISO 7005 / ANSI B16.5

    We’re Here to Help – Enquire Now!






    Categories: , ,
    HVAC
    Easy Install
    Faster Installation
    Sustainable
    Cost Effective

    Description

    Product Features

    Available for HVAC, portable water system.

    Completely sealed in both directions – airtight grade.

    Valve plate has a precision-machined spherical sealing surface, which has low torque and long service life.

    Three self-lubricating bushings on the valve stem to prevent the valve stem from deflecting.

    Optimized structure, space saving.
