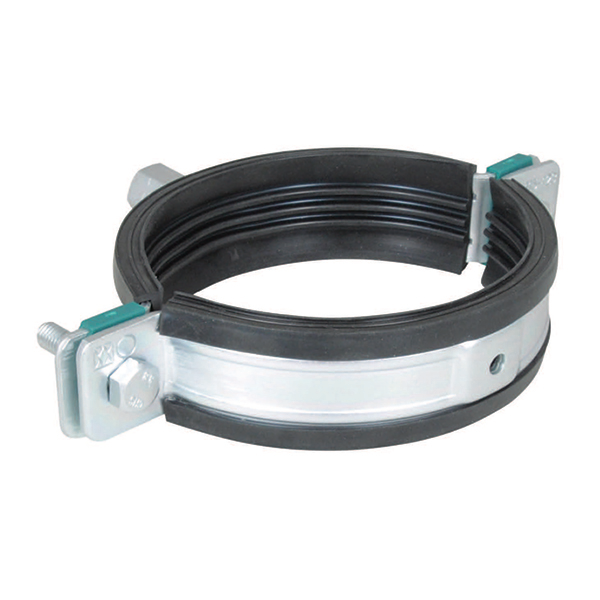

BIS Heavy Duty Clamp HD1501 (BUP1000) – M8/10/12

For metal pipes Ø 15 – 227 mm

M 8/10
M 10/12

Features and Benefits

• Two-part clamp with two locking bolts
• Up to and including 5″: locking nut is captive, hidden in plastic holder
• Heavy design
• Bolts secured with anti-loss washer
• With CO₂ welded connection nut
• Material: steel
• Noise insulating lining, EPDM rubber, black
• Also available: noise insulating lining of silicone rubber (reddish brown), heat resistant up to +200 °C (A 35 15)
• Age resistant lining
• Surface protection:
  • Product is part of the BIS UltraProtect® 1000 system
  • Suitable for in- and outdoor applications
  • Stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
• Sound insulating lining according to DIN 4109
• Tested for fire safety.
