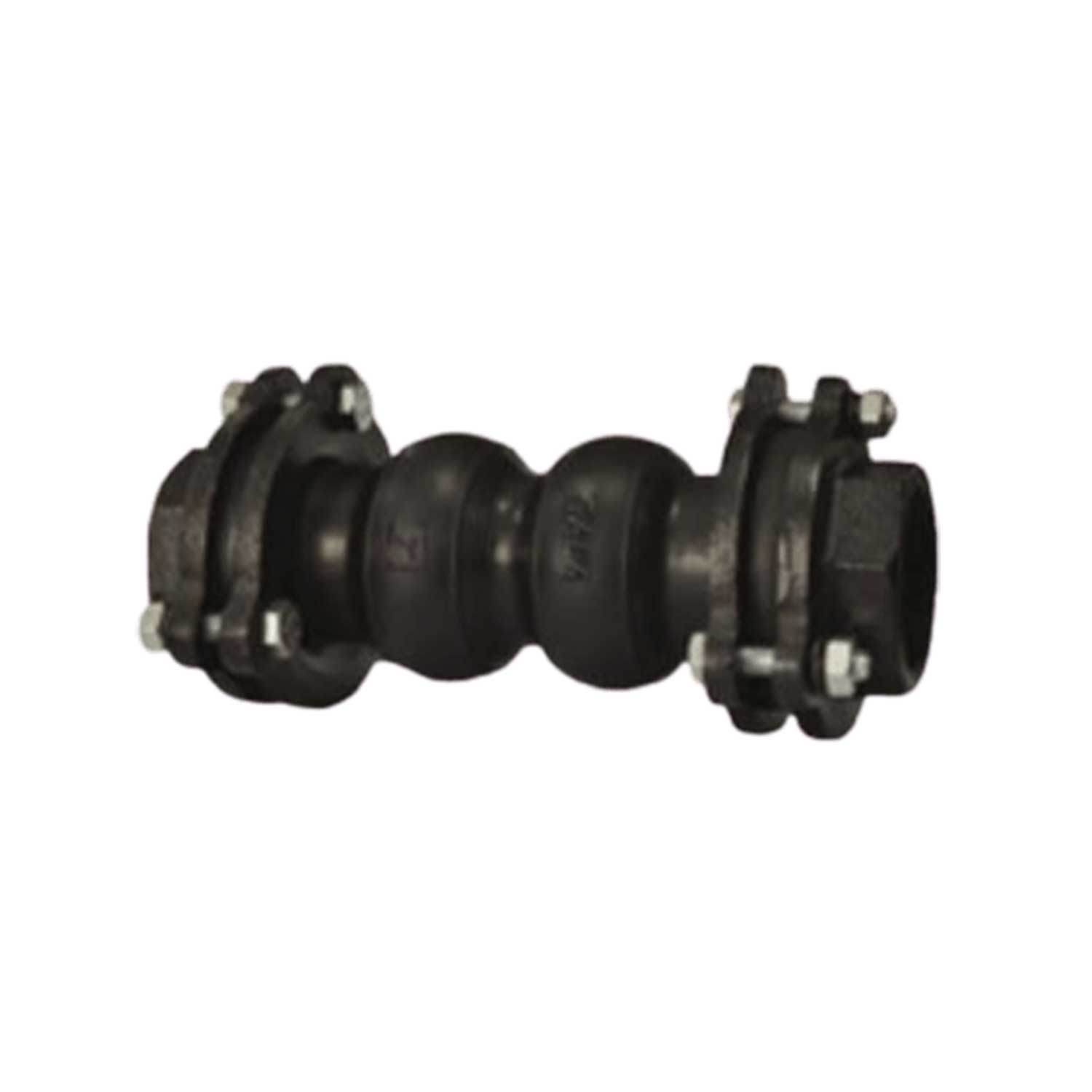

Flexible rubber joint can afford large deflection that you can hardly imagine. It has various functions and are highly reliable. Followings are the main features:
High Efficiency for Vibration and Noise Isolation
The twin sphere makes the spring constant small, decreases the body natural frequency and increases the efficiency of vibration absorption.
With standability
It can withstand a bursting pressure of over 5.39 Mpa and a maximum working pressure of 2.5 Mpa with the combination of excellent formative technique and strong chemical fibre.
Large Displacement Absorption for Eccentricity, Axial Movement and Angular Movement
Since it can absorb large displacement, Flexible rubber joint is most appropriate for the protection of pipe line system. For example, it can prevent the destruction of connecting pipe due to earthquake and subsidence of ground.
Applicable for both Suction and Delivery
The joint fits for both suction and delivery.
Highly Reliable
The packing parts are strengthened with steel reinforcing rings to prevent the rubber body from slipping out of the fitting sides of flanges.
Convenient to install
When limited space is allowed for installation, the free type sockets can be screwed separately to pipe before fitting in the joint.
Material
| No | Parts | Materials |
|---|---|---|
| 1 | Flange-A | Ductile Iron |
| 2 | Flange-A | Ductile Iron |
| 3 | Nut | SS400 |
| 4 | Bolt | SS400 |
| 5 | Rubber | EPDM |
| 6 | Rubber | EPDM |
| 7 | Union Edge | Ductile Iron |
| 8 | Washer | SS400 |
| 9 | Reinforcing Cord | Nylon |
